Security and fire protection combined

SeceuroFire Fire Shutters are available in 30, 60, 120 and 240 ratings

The SeceuroFire Fire Shutter is an electrically operated vertical fire shutter, consisting of a 75 mm scrolled curtain and galvanised steel box assembly and guide rails. Its design allows for both face or reveal installations and the box, curtain, guide rails and bottom rail can all be powder coated as an optional extra.

Designed to be a security barrier during normal use and to be closed automatically during an emergency situation or test. In the event of receiving a fire alarm signal the shutter will perform a powered descent to create a fire resistant barrier. If power failure occurs, the shutter will close using the intelligent battery backup feature.

Product performance

This product is uniquely capable of providing specifiers with a choice of 30, 60, 120, or 240 minutes integrity performance in accordance with the standards listed above.

The SeceuroFire Fire Shutter is available in 30, 60, 120 and 240 minute ratings.

Size limitations

  Minimum (mm) Maximum (mm)
Width 800 5710
Height 800 4700

Maximum sizes can vary according to integrity rating, please check for confirmation and refer to Technical Data sheets for further information.

Approved standards

The SeceuroFire Fire Shutter has been tested to BS EN 16034: shutters product standard, fire resisting characteristics and BS EN 13241: shutters product standard, performance characteristics. The product was tested and approved by Warrington Fire, report 413395.

Fire safety & compliance, without compromise

SWS UK have been proudly designing and manufacturing physical security products in the UK since 1985. With a reputation for innovation and unrivalled customer service, our in-house R&D team continually refine our product range to ensure we remain at the forefront of technology.

Compliance

Our fire shutters have been fully tested and are compliant to the latest standard BS EN 16034:2014 and CE Marked to BS EN 13241-1:2003 in line with the latest government legislation which came into effect November 2019.

Intelligent Features

Modular design

Post order alteration enabled due to modular design features of the redesigned and redeveloped shutter.

Chamfered shutterbox

Boxes are supplied in sleeved sections to allow for expansion starting from 250 mm endplate, depending on shutter height and component integrity requirements.

Controls

Fully tested control options with separate battery backup.

Finish

Galvanised as standard or powder coated to RAL or BS colours at extra cost.

Curtain

A single skin 75 mm scrolled.

Motor

The Fire Shutter is powered using a 240 V AC tubular motor which is supplied as standard with a 2.5 m 4 core cable.

Guide rails

65 mm, 75 mm or 100 mm deep, depending upon shutter width mounted on steel angles for fixing. Available for face or reveal installations.

Bottom rail

T Sectioned steel bottom slat 49 mm high x 74 mm deep

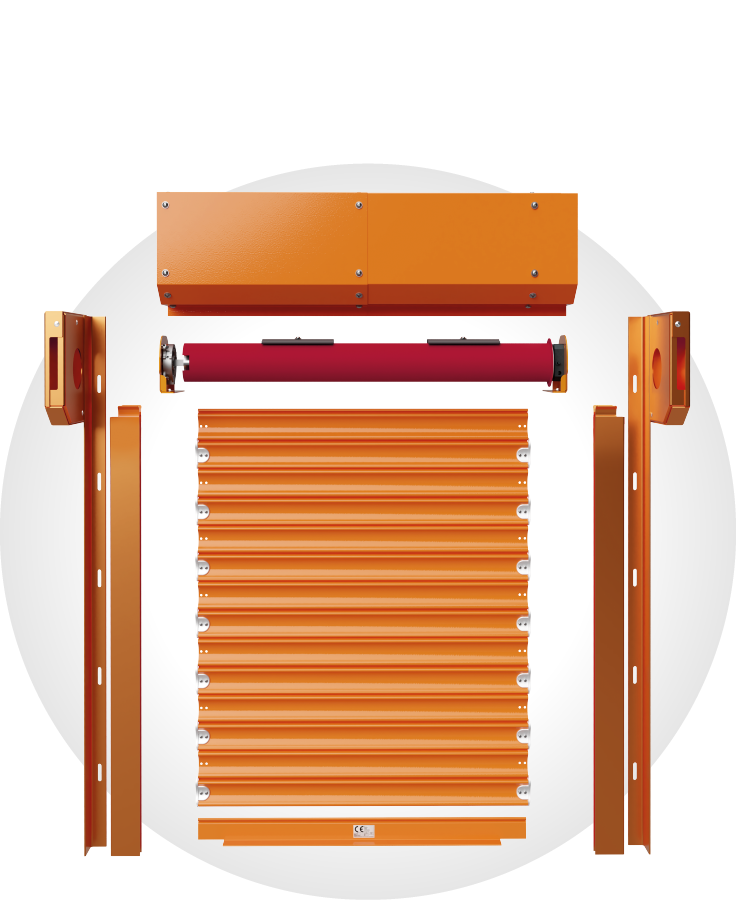

SeceuroFire Fire Shutter Exploded View


Battery Backup & Control Options

Each of our control and battery backup combinations have been fully tested through the UKAS accredited test body, and are simple to install thanks to our quick installation guides. Battery backup brackets are also available, making mounting even easier. Covering a wide range of installation scenarios, our control options also allow for additional audio and visual safety devices to be specified.

Key to compliance, our proven and reliable hibernation feature allows the shutter to close in an emergency situation up to 30 days* after power failure. Not only that, but the BBU houses technology that slows energy depletion, meaning that there is always enough energy to close the product without the risk of a failure to close.

*based on the battery backup unit being fully charged and not being used as a normal shutter, the fire system should be tested weekly and any faults fixed prior to the next test.

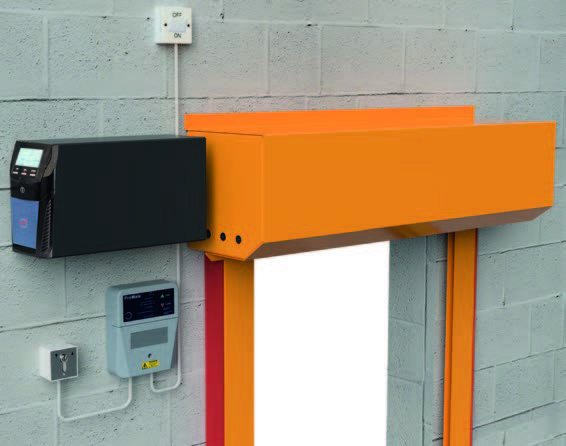

FC+ (includes battery backup as standard)

FC+ is a simple plug and play option, offering quick and easy configuration on site, particularly useful when wiring into an existing building management system. It has a small relay unit which is ideal for tight installations where space is restricted. The panel comes with simple control options to operate the shutter and can be directly plugged into the battery backup unit provided.

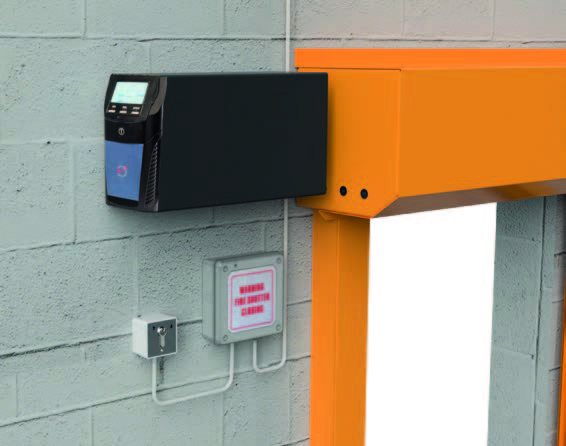

SF1 (includes battery backup as standard)

The SF1 Fire Shutter Control Panel allows the option to add accessories, such as local heat sensors, and alarm equipment. This option is ideal for projects with no existing building fire management system, or where the shutter is over an egress route and needs local heat detection. The panel is easily configurable with the battery backup unit, and also features built in audio and visual warnings.

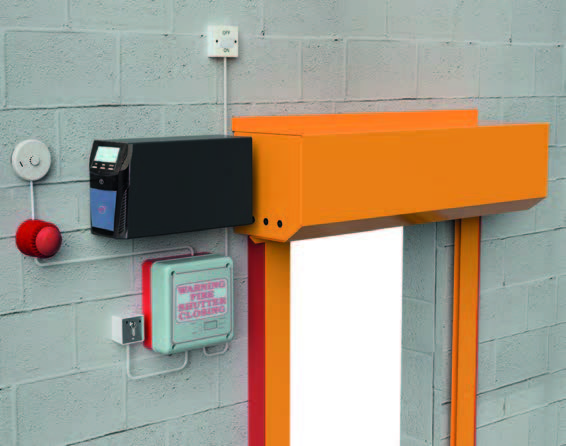

SFP (includes battery backup as standard)

The SFP Fire Control Panel also gives the option for additional accessories, allowing more specific set up with the controls and alarm. Further to this the controller also features audio/visual warnings, with the ability to programme features such as close delay.

SFP+ (includes battery backup as standard)

As well as delivering the same benefits as the SFP, the SFP+ offers the option of a closing override button, allowing the user to override the closing action temporarily in an emergency situation, allowing for escape.*

*Under exceptional circumstances whereby health and safety have special requirements and only when deemed necessary by the fire officer.
